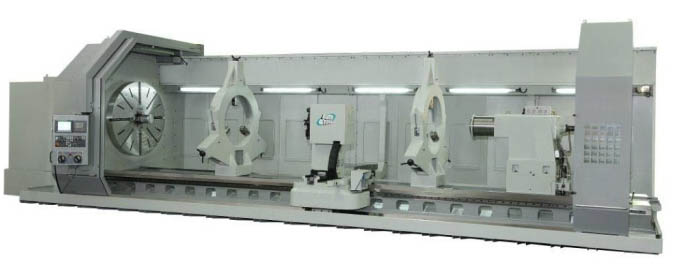

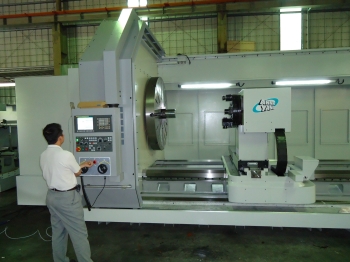

Annn Yang 2800 through 3600 Models

Swings of 110" / 118" / 134" / 141"

Up to 40000mm / 1575" centers

Up to 16" spindle bore

Available with deep hole drilling systems click here.

super heavy duty tailstock with built in live center

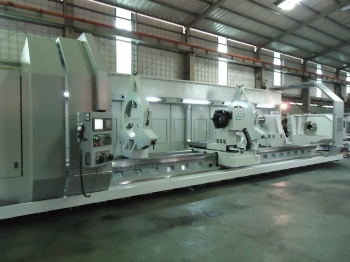

A super heavy duty tailstock with built in live center.
With one steady rest this can support 40 metric tons on
the heavier Annn Yang lathe models

MODEL DY-2800C DY-3000C DY-3200C DY-3400C DY-3600C
Machining Capability Distance Between Centers 2000 mm ~ 40000 mm
Swing Over Bed 2800 mm 3000 mm 3200 mm 3400 mm 3600 mm
Swing Over Cross Slide 2400 mm 2600 mm 2800 mm 3000 mm 3200 mm
Bed Width 2000 mm
Main Spindle Spindle Nose A2-15, 230 mm: 1 ~ 200 rpm
A2-20, 310 mm: 1 ~ 200 rpm
A2-20, 360 mm: 1 ~ 200 rpm
A2-28, 410 mm: 1 ~ 200 rpm
Spindle Bore
Spindle Speed (rpm)
Travel Cross Travel (X Axis) 1400 mm 1600 mm 1700 mm 1800 mm 1900 mm
Motors Main Motor 100 hp
Inverter 120 hp
X Axis Servo Motor A30 servo motor 5.5 kw / 30 Nm / 4000 rpm
Z Axis Servo Motor A100 servo motor 11 kw / 100 Nm / 2500 rpm
Oil Pump 100 W
Coolant Pump 450 W, 6 ~ 10 bar
Hydraulic Tank Pump (Optional) 3 hp (2.2 kw)
Tank Capacity Hydraulic Tank (Optional) 20 L
Lubrication Pump 8 L
Ball Screw X Axis Diameter 63 mm
Z Axis Diameter 80 mm
Tailstock Quill Diameter 500 mm
Quill Travel 500 mm
Quill Taper MT7
Measurement Net Weight (Approx.) 10 Meter machine about 80 tons

Standard Equipment and Features
• automatic gear change system
• quick change 4 way toolpost
• coolant system
• centralized automatic lube system for slideways and ballscews
• steady rest
• worklight(s)

Options Include
• Hydraulic power chucks
• Choice of Anilam, Fagor or Fanuc CNC controls
• Headstock oil cooling system
• Electric or Hydraulic tool turrets, horizontal or vertical axis
• Hydraulic tailstock
• Air lift on tailstock
• Special carraiges and steadies for deep hole drilling
• Chip conveyor systems and chip carts
• Larger capacity steady rests


afd asfd asfd asfd
asfd asfd aasfd asfd
asfd asfd asfd asfd
  asfd asfd

asfd asfd
asfd
asfd
asfd
automatic gear changer
Z axis motor Z axis ballscrew mount
power turret hydraulic tailstock
12 tool turret Servo motor for spindle positioning
tailstock with air lift system electric 4 way  turret
linear Scales hydraulic chuck
