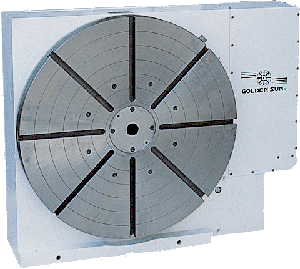

Golden Sun GS-801RV CNC rotary table

Golden Sun GS-801-RV 32" Daimeter CNC Rotary Table

 CNC Type of CNC rotary table
 801  Table diameter
 RV Motor  position at right-side and vertical installed
A  Indexing  accuracy class

Features
1 A combination of high  precision bronze / nickel worm wheel and case hardened steel worm screw ensure long term indexing accuracy.
2 Multi-points pneumatic brake system offers superior clamp torque, insures smooth machining without  deflection under a heavy load.
3 Whatever interfaces as a true 4th for both continuing and positioning machining or a M-code indexer  for positioning machining.

Specifications
Item / model Unit CNC-801RV
 Table diameter mm / inch 800  / 31.50
 Center height vertical mm / inch 480 / 18.90
 Table height horizontal mm / inch 340 / 13.39
Over all height in vertical without motor  cover mm / inch 880 / 34.65
 Thru-hole diameter mm / inch 130 H7 / 5.12 H7
Width of T-slot mm / inch 20 H7 / 0.79 H7
Width of guide block mm / inch 22 H7 / 0.87 H7
Servo motor type MELDAS HA-200
FANUC a22
Gear ratio 1:180
Min indexing unit degree degree 0.001"
Max. R.P.M. (motor:2000/rpm) rpm 11.1
Pneu. clamp force p:5kg/cm2 kg.m 370
Hydro. clamp force p:20kg/cm2 740
Indexing accuracy class sec. AA=6"
A=15"
S=30"
Repeatability sec. ±2"
Max. machining force kg.m 350
Net weight kgs 1200
Max. load vertical W=500kg
horizontal W=1000kg
Max. radial load kg F=2080
kg.m F*L=185
kg.m F*L=228
Max. working inertia kg.cm.sec2 816
Spindle drive torque kg.m 124
<
