Pragati-Automation   Ordering Information


How to order
ORDERING INFORMATION

Ordering Example:
BTP-80 Turret, 8-Station, Rear Mounting, 415 V, 3 Ph. Motor.

BTP-80-8-R-415

BTP--

|
|
|

Model
125
100
80
63
50

|
|
|
No. of Stations
8-Station 8
12-Station 12

|
|
|
Mounting
Rear R
Front F

Refer note below

|
|
|
Motor Voltage ,
3-Phase
Range VAC Specification
380 to 440 V 415
210 to 230 V 220
100 to 120 V 110


Default values: No. of Stations - 8
  Mounting Position - R
  Motor Voltage - 415 V
  Frequency - 50/60 Hz

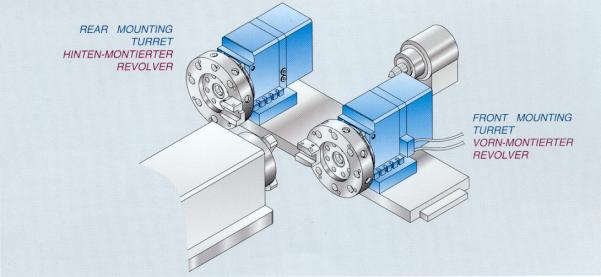

MOUNTING POSITION

Pragati turrets mounting position drawing

Coolant poppet position of turret depends on the mounting position, front or rear.
If not specified, rear mounting is standard.
It is important to specify front or rear position, while ordering the too disc.
