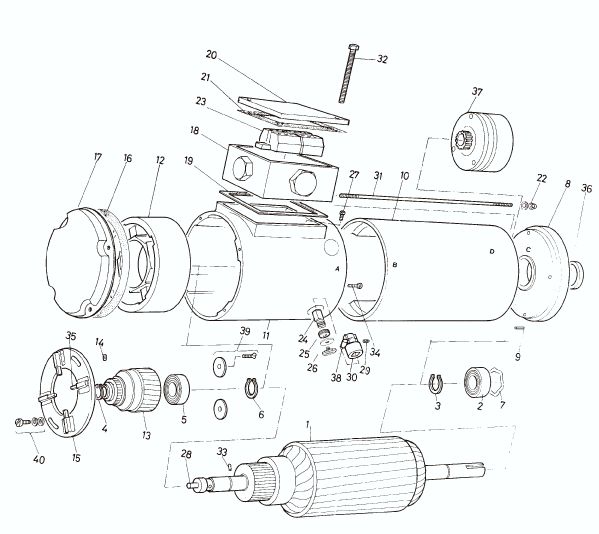

| 01 |
Armature Assembly (serial number required) |
| 02 |
Bearing (Drive End) |
| 03 |
Circlip (Drive End) |
| 04 |
Tacho Tachogenerator Clip |
| 05 |
Bearing (Commutator End) |
| 06 |
Circlip Commutator End |
| 07 |
Wave Washer |
| 08 |
Drive End Cover |
| 09 |
Spring Dowel (Drive End Cover Location) |
| 10 |
Body Assembly (serial number required) |
| 11 |
Commutator End Cover Assembly |
| 12 |
Tacho: Tachogenerator Body Assembly |
| 13 |
Tacho: Tachogenerator Armature Assembly (serial number required) |
| 14 |
Tacho Armature Retaining Screw |
| 15 |
Tacho: Tachogenerator Brush Gear Assembly |
| 16 |
Cover Plate Gasket |
| 17 |
Cover Plate |
| 18 |
Terminal Box |
| 19 |
Terminal Box Gasket |
| 20 |
Terminal Box Lid |
| 21 |
Terminal Box Lid Gasket |
| 22 |
Fixing Stud Nut / Sealoc Washer |
| 23 |
Terminal Block |
| 24 |
Motor Brush (Available in kits K3001, K3002 and K3004 only) |
| 25 |
Insert |
| 26 |
Brush Holder Cap and Disk |
| 27 |
Earth Screw |
| 28 |
Encoder Drive Pin |
| 29 |
Brush Holder Fixing Screw |
| 30 |
Brush Holder |
| 31 |
Fixing Stud |
| 32 |
Terminal Box Fixing Screw |
| 33 |
Tacho: Tachogenerator Drive Pin |
| 34 |
Tacho: Tachogenerator Body Fixing Screw |
| 35 |
Tacho: Tachogenerator Brush |
| 36 |
Oilseal (if fitted) |
| 37 |
Holding Brake (if fitted) |
| 38 |
Thermal Overload |
| 39 |
Washer Bearing Retainer |
| 40 |
Tacho: Tachogenerator Brush Gear Fixing Screws |
| K3001 |
Service Kit (contains all parts required for servicing 1 motor)
16 pieces - 4 each brush assemblies, caps, springs and O-rings. |
| K3002 |
Brush and Cap Kit (contains 20 brushes and caps) |
| K3004 |
Brush Kit (contains 40 brushes) |
