Cyclematic CTL-618 precision toolroom lathe

Questions ?
Call us at 905-624-5536

H.H. Roberts Machinery Limited
1324 Matheson Blvd E., Mississauga, Ontario, Canada. L4W-2Z7, Fax 905-624-9065

Cyclematic Precision Toolroom Lathe CTL-618-EVS.

Photo of the Cyclematic CTL-618-EVS electronic variable speed drive precision toolroom lathe built on a Hardinge style dovetail bed

This is the CTL-618-EVS Electronic Variable Speed . This is a clone of the Hardinge HLV-H. We fit the same family of vector drives into this machine as we use on our CNC machines.

These are available with spindle speeds having top speeds of 4,000 or 6,000 rpm. This model has thread cutting and electric variable speed feeds on the carriage.

To download the catalogue in .pdf format Click here

To see the tooling and options selection page Click Here

To view an online operator's manual Click Here

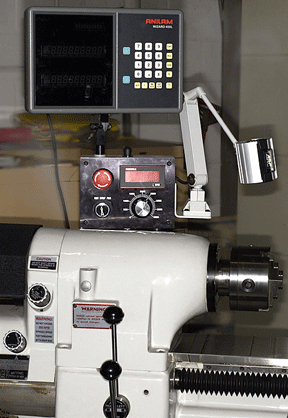

Headstock and electronic variable speed control on the cyclematic CTL-618 precision toolroom lathe

In this picture the lathe is shown with an Anilam Digital Readout. This special version of the readout give us a tool file for tool length offsets. The readout can also be couple to the spindle drive and using the same algorithms as a CNC lathe you get Constant Surface Speed.

The current Acu-Rite readouts now have LCD screens with graphics. Colour and program save with upload and download are also available.

This class of lathe is renown for precision work. Now with constant surface speed you can also make parts with superior surface finish.

		CTL-618EVS
	Swing over bed	280 mm 11"
Spindle Capacity	With Chuck Over Carrage	150 mm 6"
	With Chuck Over Bed	152 mm 6"
	With Expanding Collets	76 mm 3"
	With Round 5C Collets	27 mm 1-1/16"
	With Hexagon 5C Collets	22 mm 7/8"
	With Step Chucks	27 to 152.4 mm 1-1/16" to 6"
Swing over bed		280mm 11"
Spindle Nose Diameter		55.6 mm 2.189"
Spindle Nose I.D/O.D		5C - 10° / external 4° Taper
Spindle Speeds (Variable)		0-4000 R.P.M. Optionally to 6,000 rpm may be limited by chuck
Inverter Spindle Motor		3 HP optionally 5 Hp
Hole Through Spindle		31.75 mm 1-1/4"
Bar stock diameter (5C collet)		27 mm 1-1/16"
Hole through spindle		31.75 mm 1-1/4"
Distance Between Centers		457 mm 18"
Swing Over Carriage		230 mm 9"
Swing Over Cross Slide		152.4 mm 6"
Carriage Power Feed Range		8~178 mm 5/16" ~ 7"
Cross Slide Power Feed Range		5~102 mm 3/16" ~ 4*
Cross Slide Travel		152.4 mm 6"
Quick-action Compound Slide Travel		2.5 mm 0.1"
Compound Slide Travel		76 mm 3"
Coolant Pump		1/8HP
D.C. Feed Motor		220V , 70W
Power Supply		230/3/60 or 220/1/60
Tailstock Spindle Travel		95 mm 3-3/4"
Range of Threads in Gear Box		11-108 per inch
Number of Thread Changes		36 Metric 36 Inch
Net Weight (approx)		1010 kgs 2,220 lbs.
Machine dimensions (L x W x H)		1850 x 750 x 1700 mm 73" x 30" x 67"
