Sunmaster ERL:
13" Swing Made in Taiwan Sold by Roberts Machinery for over 15 years |
| Click here to download the full catalogue in PDF format. | |
 |
 |
| FEATURES All casting are properly stabilized and stress relieved. Bed ways are hardened & ground to min. HS-70 Turcite B coating between the bed and carriage. Extremely low noise level. Foot brake Built-in coolant pump & fitting provided. CSS on request for E.V.S model. Wider bed way which give vibration-absorbent |
The electronic variable speed drive on the V versions of this series can be fitted with the Anilam 450-L digital readout which when coupled to the spindle drive gives constant surface speed like on a CNC lathe, and the benefits from it of better surface finish, longer tool life and more efficient cutting times. The Anilam readout also holds tool offset lengths so cut positioning can be done to drawing dimensions even when tools are changed. |
ERL-1330 |
ERL-1340 |
ERL-1330V |
ERL-1340V |
||||||||||||||
| Capacity | Height of centers | 170 mm 6.69" |
|||||||||||||||
| Swing over bed | 340 mm 13.38" |
||||||||||||||||
| Swing in gap | 512 mm 20" |
||||||||||||||||
| Swing over cross slide |
210 mm 8.26" |
||||||||||||||||
| Distance between centers |
760 mm 30" |
1000 mm 40" |
760 mm 30" |
1000 mm 40" |
|||||||||||||
| Width of bed | 230 mm 9" |
||||||||||||||||
| Gap width in front of faceplate | 150 mm 5" |
||||||||||||||||
| Headstock & Main spindle |
Spindle nose, Internal taper |
D1-4" MT. No.5 |
|||||||||||||||
| Spindle center sleeve |
MT No.5 x MT. No.3 |
||||||||||||||||
| Spindle bore | 40 mm 1.57" |
||||||||||||||||
| Spindle speed: Gear steps/Range |
|
|
|||||||||||||||
| Carriage | Length on bed / Width of carriage |
400 mm 15.75" 384 mm 15.12" |
|||||||||||||||
| Cross slide travel | 180 mm 7" |
||||||||||||||||
| Top slide travel | 100 mm 4" |
||||||||||||||||
| Threads & Feeds |
Whitworth threads: Kinds/Range |
45 Kinds / 2 ~ 72 T.P.I. |
|||||||||||||||
| Metric threads: Kinds / Range |
39 Kinds / 0.2 ~ 14 mm |
||||||||||||||||
| D.P. threads: Kinds / Range |
21 Kinds / 8 ~ 44 D.P. |
||||||||||||||||
| M.P. threads: Kinds / Range |
18 Kinds / 0.3 ~ 3.5 M.P. |
||||||||||||||||
| Longitudinal feeds | 0.05 ~ 1.7 mm (0.002" ~ 0.067" |
||||||||||||||||
| Cross feeds | 0.025 ~ 0.85 mm (0.001" ~ 0.034" |
||||||||||||||||
| Tailstock | Quill diameter | 50 mm 2" |
|||||||||||||||
| Quill travel | 112 mm 4.5" |
||||||||||||||||
| Taper of center | MT. No.3 |
||||||||||||||||
| Motor | Main spindle | Standard 3 HP Optional 2 speed 5 HP / 2.5HP |
AC 2.2kW (3HP),Inverter |
||||||||||||||
| Coolant pump | 1/8HP |
||||||||||||||||
| Weight (Net/Gross) Approx. |
850 kgs 1000 kgs |
1000 kgs 1200 kgs |
850 kgs 1000 kgs |
1000 kgs 1200 kgs |
|||||||||||||
| Specification subject to change without notice | |||||||||||||||||

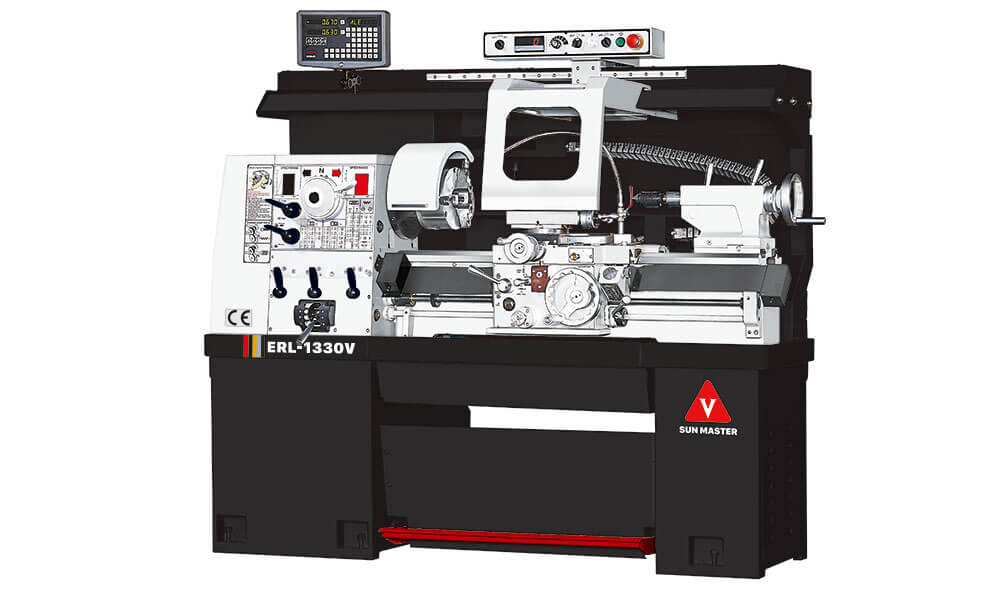

| Options: the picture below shows and ERL model with several options: - 5C collet closer - rear splash guard with work light - chuck guard - sliding toolpost guard ( requires the rear splash guard) - leadscrew cover - live center  |
