Topwell TW-32-QVF Bed Type Milling Machine
with 6,000 RPM Spindle
manual and CNC versions available



The Topwell TW-32-QVF milling machine is available with 7 1/2 Hp quill type head as shown to the right or with a 10 Hp machining centre type head

The 7 1/2 Hp to 15 Hp vector drive head is available with your choice of back geared or direct drive.
Direct drive speed range 75 to 4,000 or 100 to 6,000 rpm. via belt change.
Back geared ranges 15 to 750 and 75 to 6,000.

This milll has a 12" x 50" table with 20" travel on Y and 20" travel on the column.

The axes are driven by CNC class Yaskawa AC servo motors with variable feed rates on each axis independently. This allows an easy and economical upgrade to CNC in the future with a Fagor control.  The Acu-Rite Millpwr G2 control is popular in this seraies.

They come with ballscrews on all 3 axes as standard, Hardened and ground ways with Turcite counterslides, telescopic steel covers on Y, coolant system and chip pan, worklight etc.
.


6,000 RPM Your choice of direct drive or back geared heads Topwell TW-32-QVF manual bed type milling machine
The above picture shows the TW-32-QVF milling machine with the optional Heidenhain digital readout.

The 7 1/2 Hp to 15 Hp head is available with your choice of back
geared or direct drive.
Direct drive speed range 50 to 4,000 or 75 to 6,000 rpm. via belt change.

Back geared head speed ranges are 15 to 750 and 75 to 6,000.


For customers with earlier machines, field upgrades are available to the new heads are available.

Topwell TW-32 machining centre head
This is the machining center style head available
on the TW-32 frame. The cost is about the same as
as the quill head.
CNC UPGRADE PATH IS BUILT IN

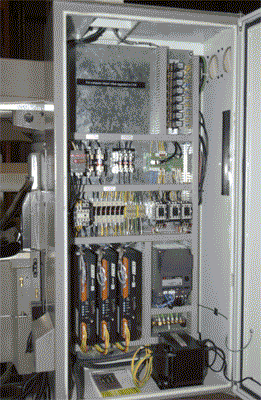

To the right is the electronics cabinet of the VF series. The amplifiers for the X, Y and Z feeds ( Z axis is the ~20" feed on the column )  This is the same series amplifier and servo motors that we have used for years on the Anilam controlled machines that we build.

The top left corner of the panel is empty for future installation of a CNC,  Only a few minor components in this cabinet and changing the pendant for a CNC operator's control panel are required for an upgrade.  The servo motors and amplifiers, spindle control, ballscrews, Turcite slideways, way covers etc are all already on the VF machines.

Ballscrews, automatic lube, servo axis drives, AC variable speed spindle drive and motor, limit switches are all standard.  These items are all built in already so a future upgrade to a full CNC is very economical.
CNC ready electronics cabinet on Topwell bed mill
Showing the operator control panel of the Towpell VF series miliing machines
To the left is the control pendant for the VF series. The current models come with the Acu_Rite 200S as standard equipment.

Controls on the Panel:
At the top left is the spindle speed display. Under the display is the speed setting knob and the forward - stop - reverse switch.

In the middle and are under the white safety bar making them a bit hard to see are the joysticks for axis selection

Just below the joysticks are the geared knobs for sensitive feed rate setting. Feed rates are displayed on the digital readout.  On the knee mills X and Y have the feed knobs and the vertical knee lift just had the joystick for rapid positioning. On the bed mill versios all 3 axes have feed knobs.
Below the feed knobs are the yellow buttons for the rapid traverse for each axis.

The lower switches are for the worklight and coolant on the left and an
E-stop on the right.

The Topwell line is also availabe with the new Acu-Rite G2 Control.  It is available
in 2 or 3 axis configurations,  We recommend the upgraded axis drive system.   We do the retro-fit
in our shop.

It is worth noting that compared to a knee mill retro-fit this offers 20" of travel on the Z axis
compared to about 5" on a knee mill quill.

Acu-Rite Millpwr G2 CNC control
Available with the Anilam 5000 CNC control.   We have controls in stock ( Dec 2014 ) Anilam 5000 CNC Control
