HH Roberts / Topwell 5-VK   5 Hp #40

12" x 50" table 32" x 16" travels # 40 taper spindle can accept #40 milling machine, Cat-V-40 or BT-40 CNC tooling hardened and ground X and Y axes with Turcite counterslide on saddle Align 500P power feed with rapid traverse on table central lube Weight approximately 3,750 lb Acu-Rite , Fagor and Heidenhain digital readouts are optional as are full coolant systems with chip pans and side splash guards. Acu-Rite or Fagor CNC can be fitted this machine is also available with the 5 / 7.5 Hp variable speed vector drive head.   See the 5-GL version here.

	5-VK
Spindle speeds	550 to 4,200
Table size	optional 12 or 10 x 42"
Table travel	33" with 50" table or 25" with 42" table travel is reduced with power feed fitted.
Cross travel	406mm 16 "
Knee travel	388 mm> 15 1/4"
Quill diameter	4.17"
Quill travel	40 mm> 5.5"
Ram travel	670 mm 26.375"
Spindle motor	5 Hp
Spindle taper	# 40 Cat-V, BT or NMTBA>
Quill power feeds	0.043, 0.084, 0.14 mm / Rev. 0.0017,  0.0033, 0.0055" / rev
Weight	1570 kgs 3,450 lbs

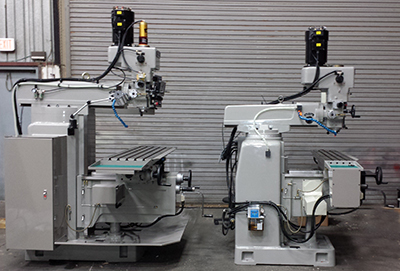

If you want something with more beef more reach and more travel check out our 5A series The 5A-GL is on the left. Standard 5-GL is on the right
