TW-34 CNC Bed Mill with 34" x 16" travels and 1500 lb workpiece capacity |
|
   |
 |

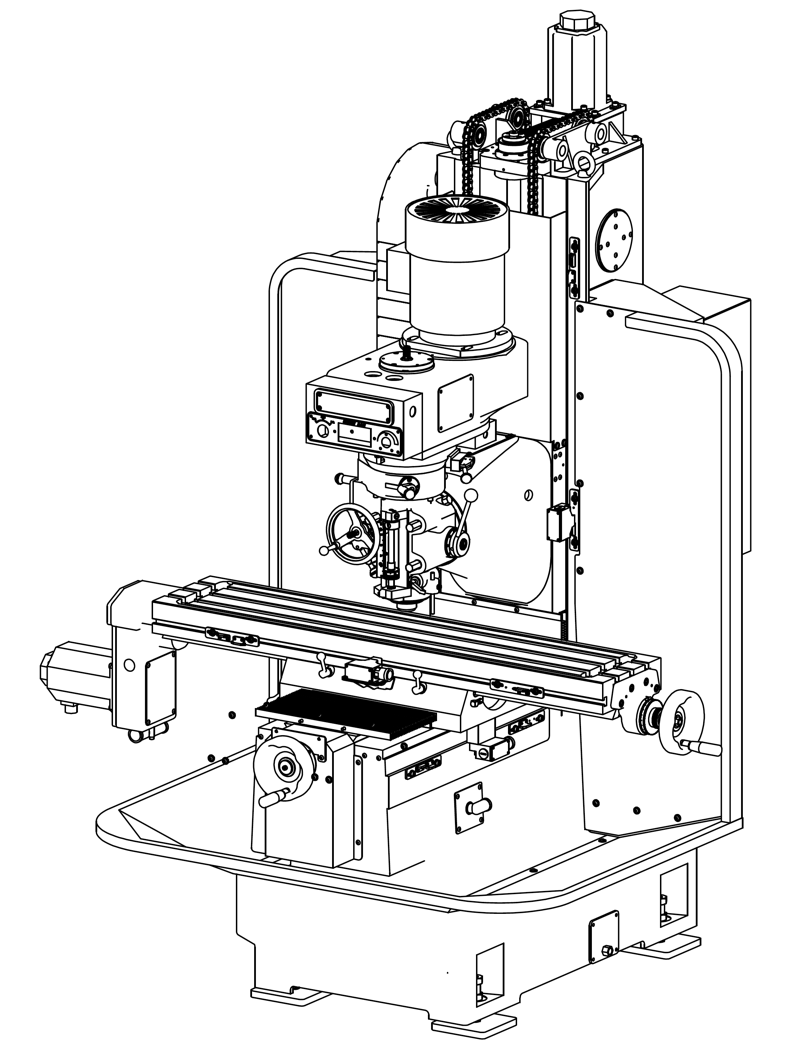

In stock 3 axis machine with Acu-Rite Millpwr G2 control 34" x 16" x 24" travels workpiece weight 1500 lbs table 10" x 50" with a 20" wide supporting saddle. R-8, #30 or #40 taper spindle spindle speeds to 6,000 rpm shown in the picture without the telescoping cross slide way covers that normally cover the cross slide screw shaft extension. |
| TW-34-Q | |
| Table Size | 10" x 50" optional 12" x 50" |
| Saddle Length | 20" |
| Travel X-axis | 34" |
| Travel Y-axis | 16" |
| Travel Z-axis | 24" |
| Spindle nose to Table | 2" to 26" |
| Spindle center to column face | 17.8" |
| Height of table from bottom of bed | 36" |
| Weight net with control | 4,100 lbs |
| Spindle taper ( R-8 is standard ) #40 spindles need a special drawbar adaptor |
R8 NMTB30 NMTB-40* Cat-V-40* |
| Quill diameter | 3-3/8" |
| Quill travel | 5" |
| Spindle motor | 3 Hp continuous 4.5 Hp 30 min. |
| Spindle speed range | 80 - 6000rpm |
| Max. weight of workpiece | 1500 lbs |
| Spindle nose to table | 2" - 26" |
| Spindle centre to column face | 17-13/16" |
| Min. machine height | 91-1/2" |
| Max. machine height | 98-1/2" |
| Width of Machine including Table | 77-13/16" |
| Over Width incl.full Table traverse | 111-13/16" |
| Footprint of Machine (Base) | 23-5/8" x 40" |
| Rapid Traverse X, Y, Z. | 200 IPM |
| Max. Drilling apacity | 1" |
| Max. tapping capacity | 3/4" |
| Auto lube pump | Yes |
| Precision ground ballscrews | Yes |
| Chrome hardened & ground quill | Yes |
| High grade Meehanite castings | Yes |
| Slide ways are Turcite coated | Yes |
| Table top hardened and ground | Yes |
| Slidesways are gardened and ground | Yes |
| * the spindles with #40 taper have 3 bearings in the bottom for extra rigidity and require special drawbars and pull stud style adaptors |
 |
