Sharnoa SVC-80 Vertical Machining Centre with Tiger 5 Control
Leadwell built these machine frames as a Leadwell MCV-2000 and they
were completed by Sharnoa with their own Tiger 5 controls.

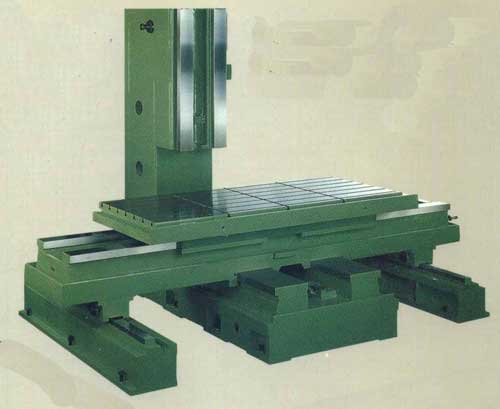

This picture shows the bare frame of the Leadwell 2000 / Sharnoa SVC80
note the very wide saddle and outer supports.

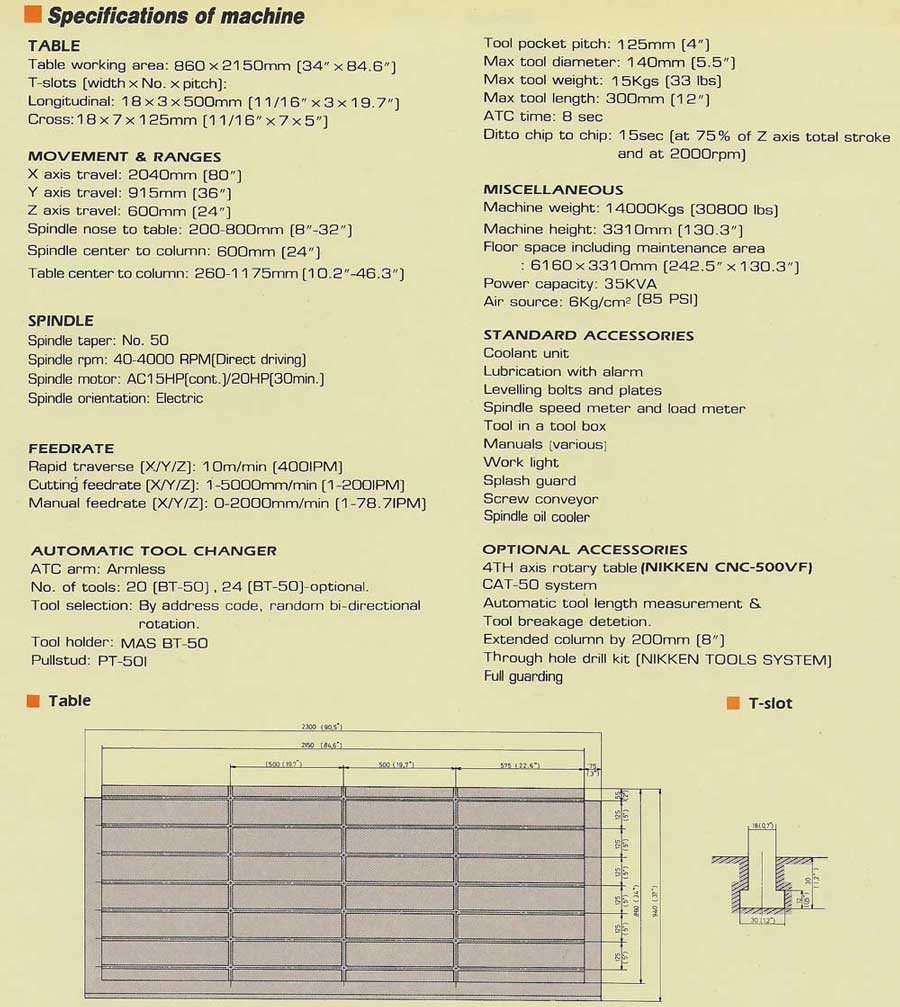

Below is a copy of the specs from the Leadwell 2000 factory brochure
This is for a Fanuc controlled machine, not the Sharnoa machine that we have in stock.
There will be some differences.
The table on the Sharnoa does not have T-slots parallel to the Y axis.


click on an imaage below for a larger view

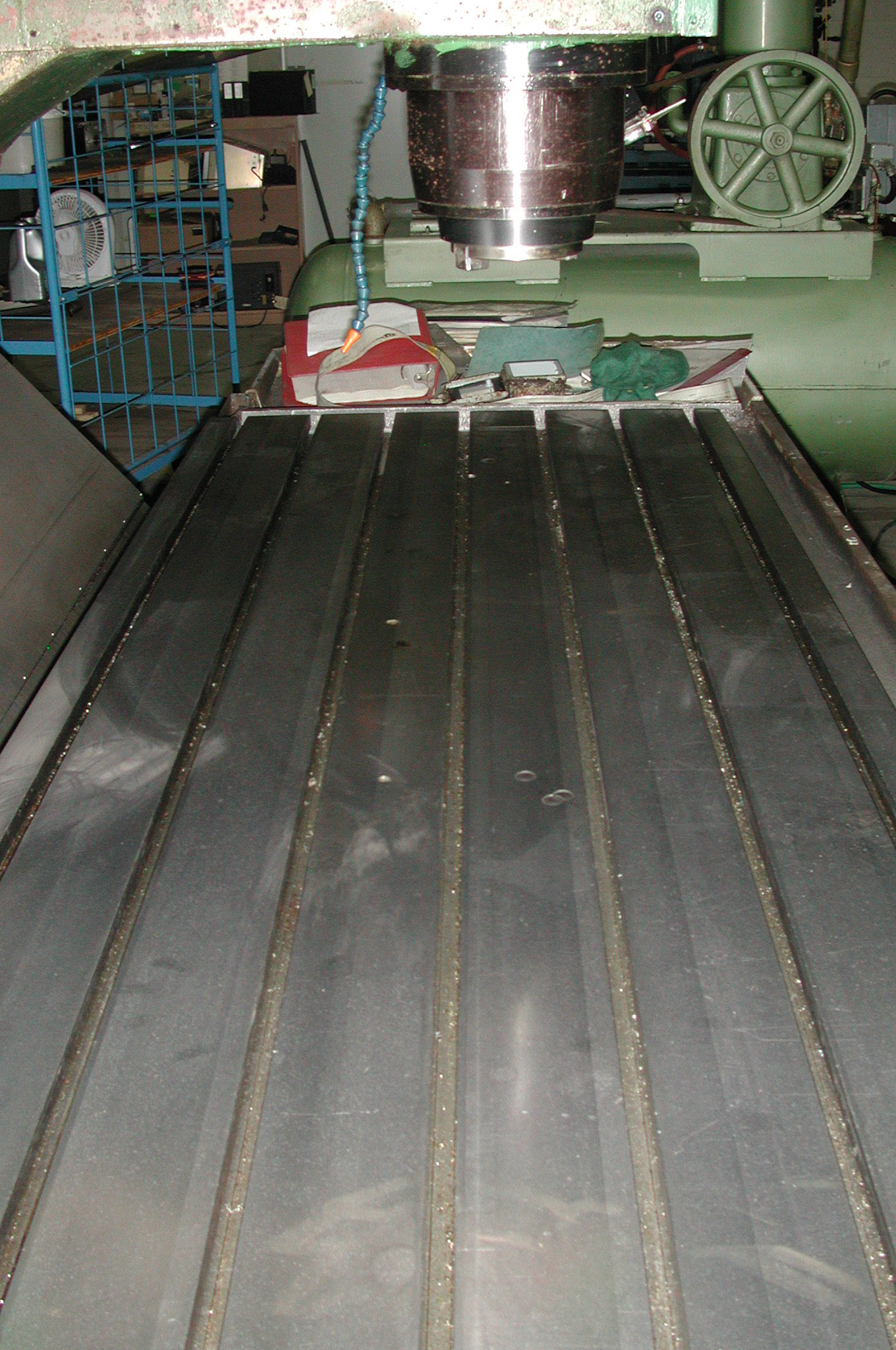

view of table from left

view of table from right

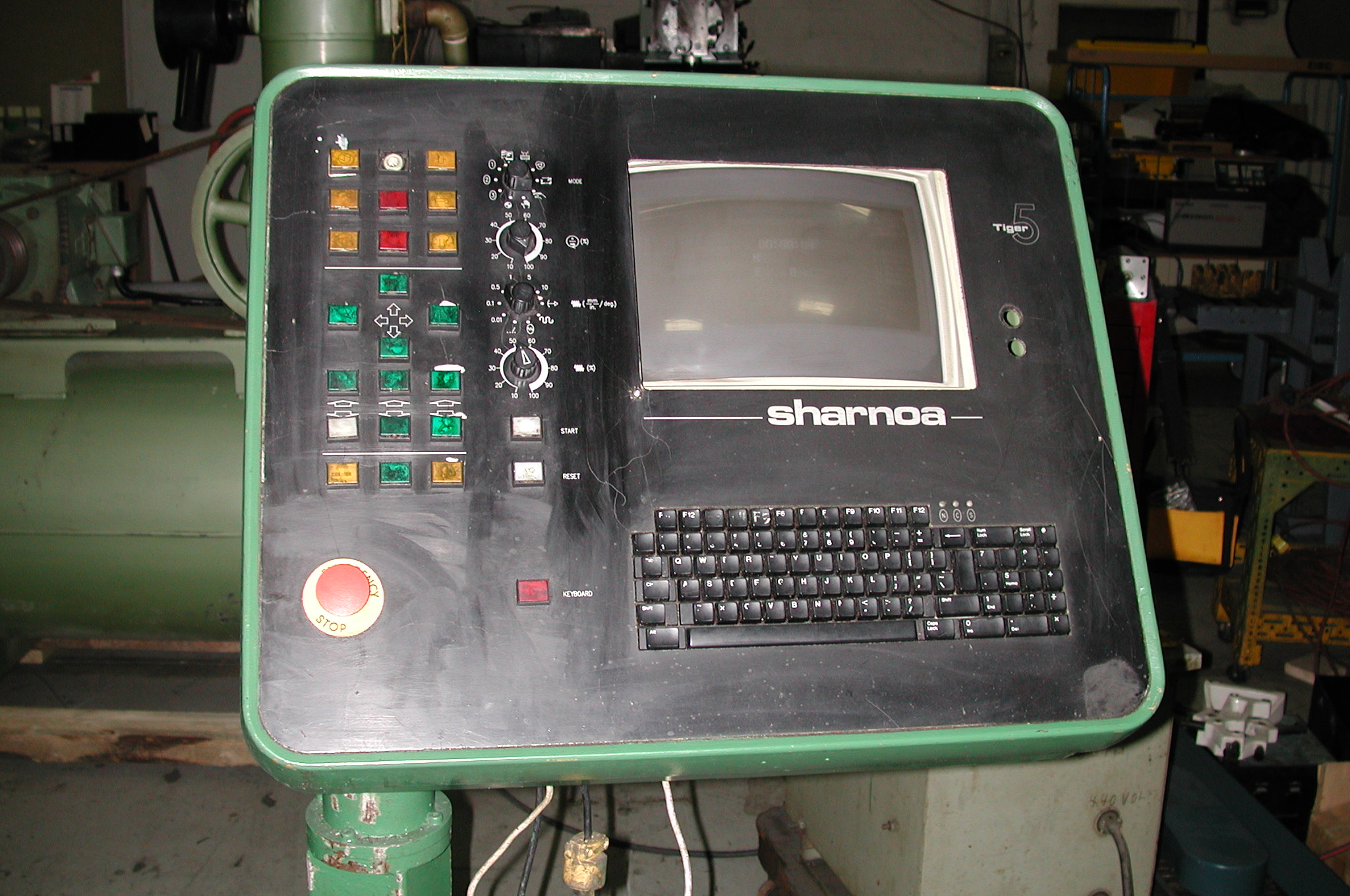

operator console
