Vertical and Horizontal Bed Type Milling Machines

Questions ?
Call us at 905-624-5536

H.H. Roberts Machinery Limited
1324 Matheson Blvd E., Mississauga, Ontario, Canada. L4W-2Z7, Fax 905-624-9065

Manual Bed Mills
Many of these models are also available as CNC

*Mills with choice of tilting quill heads OR rigid heads*

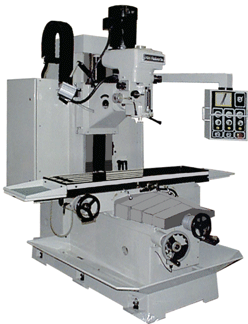

	Topwell TW-32-Q bed type milling machine 12" x 50" table 32" x 20" x 20" travels ( + 5" in quill) # 40 Cat or BT tooling CNC or manual models available 7 1/2 to 15 Hp direct drive or back geared vector drive head CNC style servo motors on each axis give variable feed rates and rapid traverse on each axis. Built in economical upgrade path for CNC Your choice of back geared or direct drive heads. 6,000 RPM
	Topwell TW-40 Series Bed Mills 20 or 22" Y axis travel 20 or 24" Z axis travel Quill head or rigid head ( rigid shown ) 6,000 rpm direct drive or back geared head Up to 15 Hp on spindle CNC or manual models available CNC style servo motors on each axis give variable feed rates and rapid traverse on each axis. Built in economical upgrade path for CNC
	Topwell TW-50 Series Bed Mills 50" x 22" x 24" Quill head or rigid head ( rigid shown ) Up to 12,000 rpm Up to 15 Hp on spindle CNC or manual models CNC style servo motors on each axis give variable feed rates and rapid traverse on each axis. Built in economical upgrade path for CNC

Mills with Huron style heads
	Top-One Niigata style mill with Huron type milling head Travels 40" x 21" x 17"
	Weida X715 Travels 59" x 27" x 27" bed type milling machine Universal Huron style head with compound swivel.
