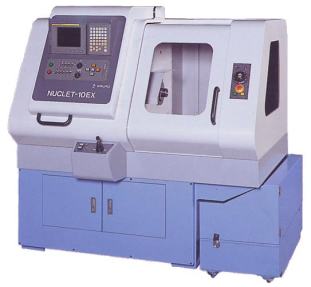

EGURO NUCLET-10
Most advanced CNC lathe of linear turret
or gang
tooling, developed by EGORO with its new
viewpoints
on turning.
| Swing over bed |
350mm |
| Swing over cross slide |
200mm |
| Max workpiece size |
ø80 x 60mm |
| Collet type |
25.5mm(EDA-10) |
| Max collet ID |
25.5mm 1"+ |
| Spindle speed |
100 - 5000 rpm or 10,000 rpm |
| X axis travel |
260 mm |
| Z axis travel |
250mm |
| Rapid traverse |
15 M/min |
| Fanuc S.21i-TA |
|
| Control loop X axis |
closed loop 1 micron or 0,1micron |
| Spindle motor |
Fanuc Alpha2 |
| Control unit |
FANUC 21i - TA |
| Floor space |
1,580 x 1,360mm |
|
