The Dalian Universal Lathes CDS Series.
13", 14" and 16" Swing with 2" spindle bore and multi-disk clutch

14" x 30" and 14" x 40" in stock with 220 and 600 volt electrics.
16" x 40" coming soon.


Dalian manufactures approximately 55,000 manual lathes a year !

Attractive appearance, centralized control, and triple shaft gear-shifting mechanism in feed box.  Various threads can be cut without reset the change gears.
There are handles with figurative mark for cross and longitudianl feed as well as rapid moving mechanism in apron.
Eccentric quick-clamping construction in tailstock.
Load-relieving mechanism in saddle results in easy for moving,reducing of wear,eliminating of creep.
Centrialized lubrication with outside circulation for headstock and feedbox reduces greatly the influence on machining accuracy from thermal deformation.

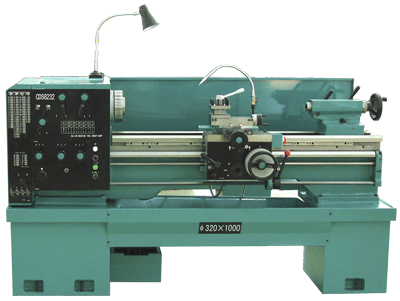

Dalian CDS-6232 universal engine lathe with multi disk clutch
Foot brake is optional and not shown in this picture
The Dalian CDS 13" x 40" lathe with multi-disk clutch
Note that we are going to be stocking only the 14" models.
The 13" models will be available on special order, but the price is only a very little bit lower


CDS-6232
CDS-6236
CDS-6241
Swing over bed 320mm
13"
360mm
14"
410mm
16"
Swing over cross slide 180mm
7"
220mm
8.66"
270mm
10.63"
Center distances 500mm  750mm  1000mm
20"  30"  40"
Swing in gap 520mm
20.47"
560mm
22.04"
610mm
24"
Width of bed 280mm
11.02"
Headstock
Spindle nose D1-6
Spindle bore 52mm
2.04"
Taper of spindle bore M6
SpindIe speeds 12 speeds from 59 to 2,100 rpm.
Threading
Range of whitworth thread 52 threads from   56 to 2 TPI
Range of metric thread 40 threads from  0.4 to 14mm
Range of module thread 46 threads from 0.2 to 3.5mm
Range of Di metrical pilch thread 33 threads from 112 to 6 DP
Tailstock
Taper of tailstock quill Morse 4
Travel of tailstock quill 125mm
4.92"
Diameter of tailstock quill 50mm
1.96"
Main motor
( two speed )
3.3/2.2kW   4.5 / 3 Hp.
optionally 6 / 4 Hp
Net weight 980kg 1030kg 1080 kg
2156, 2266, 2376 lbs
1030kg 1080kg 1130 kg
2266, 2376, n2486 lbs
1050kg 1100kg 1150kg
2310, 2420, 2530 lbs.
Floor space   (L×W)
500 mm centers: 1610 mm × 935 mm
20" centers: 64" x 37"
750 mm centers  1860 mm × 935 mm
30" centers: 74" x 37"
1000mm centers  2110 mm × 935 mm
40" centers 83" x 37"

Standard Equipment:
- multi disk forward and reverse clutch
- 3 jaw chuck
- 4 jaw chuck
- face plate
- drive plate
- steady rest
- follow rest
- Klopfer style 40 position quick change toolpost
- coolant system
- rear splash guard
-

Options:
- chuck guard
- toolpost guard
- foot brake (mechanical)
- taper attachment
- larger spindle motor
- digital readout
- worklight
- electromagnetic brake
- anit-vibration pads

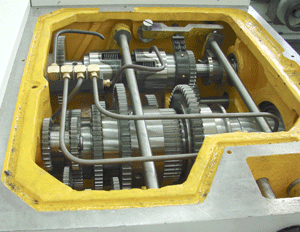

The headstock of the Dalian CDS lathe showing the multi-disk clutch
The headstock gearing of the CDS series lathes showing the multi-disk clutch on the rear shaft.
