Dalian CKE Flat Bed CNC Lathes

Here is one of our Dalian CKE lathes with the Anilam 4200-T CNC control.   The 16" x 40" is in stock now with both Fanuc and Anilam controls.

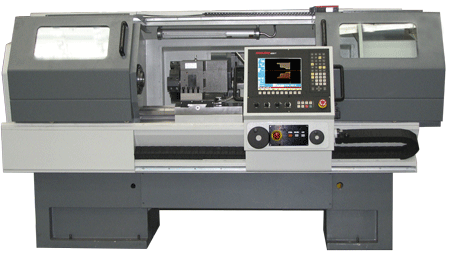

Dalian CNC lathe with Anilam CNC control
This shot shows the Dalian lathe with the Anilam 4200 and optional electric turret.

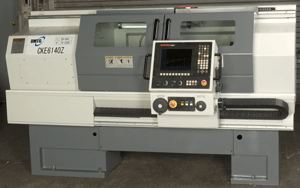

Dalian CKE-6140 with doors closed

Dalian CKE flat bed CNC latheDalian CKE flat bed CNC lathe with doors closed
In stock now with Fanuc and Anilam CNC controls
The Fanuc controlled machines in our stock have dual handwheels on the apron like
those on the Anilam controlled machines pictures at the top of this page
.
Available with   Anilam logo  Fanuc logo
• Choice of high speed direct drive headstock or high torque geared headstock.
• Geared headstock models have fully automatic hydraulic gearshift.
• Operator slides independently of the lathe carriage and can be moved to the most convenient position for the operator.
• Choice of manual quick change toolpost,  4 position vertical axis or 6 position horizontal axis automatic electric toolposts.
• Hydraulic or pneumatic chucks are optional.
• Hydraulic or pneumatic tailstocks are optional.

Inch specifications are rounded off.  Metric specs are accurate.
Most sizes are stocked for fast delivery !

High Torque Models with Geared Headstocks
and Automatic Gear Shift

Click on a model for more details
Max.swing over bed
400mm
16"
500mm
20"
Width of bed
300mm
12"
400mm
16"
Max.length of workpiece
750 1000mm
30, 40"
750 1000 1500 2000
30, 40, 60, 80"
Max.swing over slide
200
280
Spindle nose
A2-6 / D1-6
A2-8 / D1-8
Chuck size
200
250
Taper of spindle bore
M6
1:20
Spindle bore
52
2"

X axis travel
225mm
8.85"
280mm
11.02"
Z axis travel
620, 870mm
24.4, 34.25"
680 930 1430 1930mm
26.77", 36.6", 56.3", 76"
Spindle speeds
Low  20 - 650
Hi 75 - 2500
Low    7 - 135
Med   30 - 550
Hi   110 - 2200
Steps of spindle speed
2-step actuator
3 step actuator
Frequency conversion motor power
5.5 / 7.5 Kw
7 1/2 / 10 Hp
7.5 Kw cont, 10 Kw intermittent
10 Hp cont., 12 1/2 Hp intermittent
X/Z rapid traverse
4 / 5 M/min
150 / 200 IPM
6 / 10 M/min
236 / 400 IPM
Repeatability of toolpost
0.008mm
0.0003"

Horizontal toolpost
index positions
6
Horizontal Toolpost changing time
3 seconds
Diameter of tailstock quill
63mm
2.36"
75mm
2.95"
Travel of tailstock quill
130mm
5.12"
150mm
5,9"
Taper of tailstock quill
M4
M5

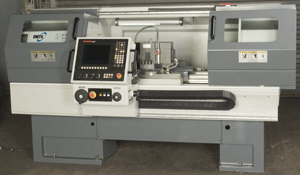

Dalian CKE6140 CNC lathe with the console at left
showing the operator console positioned to the left

Dalian CKE6140 CNC lathe with Anilam control showing the console at right
showing the operator console positioned to the right for easy loading, cleaning and tool set up.

The 6 position turret on the Dalian CKE6140 CNC lathe
The optional 6 position horizontal automatic turret which is the normal system on machines we stock
showing details of the operator console on the Dalian CKE 16 x 40 CNC lathe
The operator console. Two handwheels for X and Z allow instinctive manual positioning.  A traditional style lever on the lower right side of the console for spindle forward, stop and reverse when in manual or teach-in mode.
Above the lever is access to the floppy disk drive and RS-232 and network connections.
