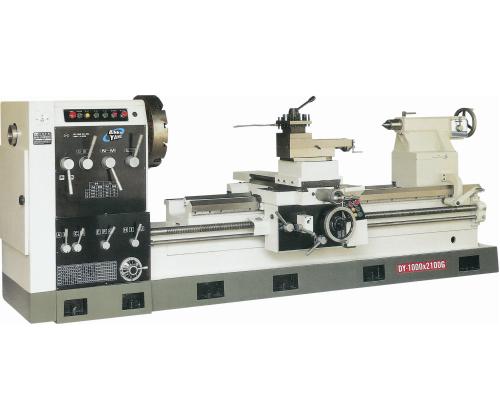

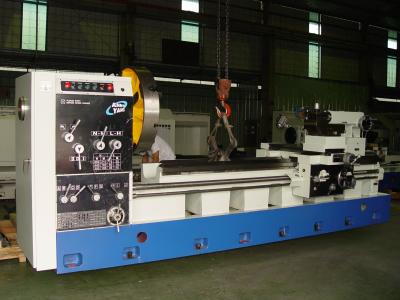

 Annnyang DY1000 lathe 40" x 80"More pictures below the specs table |
|
DY-860G |
DY-1000G |
DY-1100G |
||
| Swing | Distance between centers | 1000 mm to 16000 mm 40" to 630" |
|||
| Height of center (over bed) | 430 mm 16.93" |
500 mm 19.68" |
550 mm 21.65" |
||
| Swing over bed | 860 mm 33.85" |
1000 mm 39.37" |
1100 mm 43.3" |
||
| Swing over cross slide | 540 mm 21.26" |
690 mm 27.16" |
790 mm 31.1" |
||
| Over gap swing | 1200 x 530 mm 47.24" x 20.86" |
1350 x 530 mm 53.15" x 20.86" |
1450 x 530 mm 57" x 20.86" |
||
| Bed | Bed width | 558 mm 22" |
|||
| Headstock | Spindle nose bore and speeds |
A2-11 with 104mm bore 9 to 600 rpm A2-15 with 230mm bore 9 to 600 rpm A2-20 with 310 mm bore 9 to 400 rpm A2-20 with 360 mm bore 9 to 300 rpm |
|||
| Number of spindle speed | 12 steps |
||||
| Feeds- Thread | Leadscrew | Ø50.8
mm. 2 T.P.I. or 12mm pitch |
|||
| Number of feed changes | 40 |
||||
| Longitudinal feed range | 0.10 ~ 2.88
mm / rev 0.004 - 0.114 in/rev |
||||
| Cross feed range | 0.05 ~ 1.44 mm/rev 0.002 - 0.057 in/rev |
||||
| Inch threads | 29 kinds,
1 ~ 28 T.P.I. |
||||
| Metric threads | 26 kinds,
1.25 ~ 28 mm |
||||
| Tool slide | Cross slide travel | 505 mm 20" |
|||
| Compound rest travel | 250 mm 9.84" |
||||
| Tailstock | Quill travel | 300 mm 11.81" |
|||
| Diameter diameter | 115 mm 4.52" special tailstocks with built in live centers and / or hydraulics are available for heavy loads |
||||
| Taper of center | MT #6 |
||||
| Motor | Main motor | 20 Hp Optionally 30 Hp |
|||
| Rapid feed motor | 1 Hp |
||||
| Coolant pump | 1/8 Hp |
||||
| Weights | from 5900 kg for the 1000mm center machine to 26900 kg for the 16 m long machine | ||||
Above
specifications are subject to change without notice. Special requirement
please connect with us. |
|||||
 |

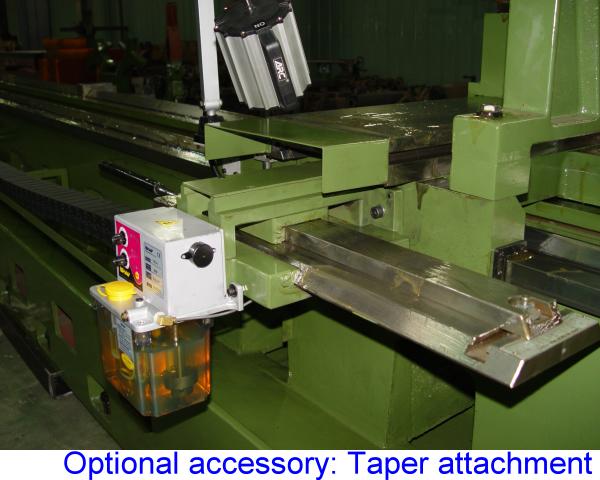

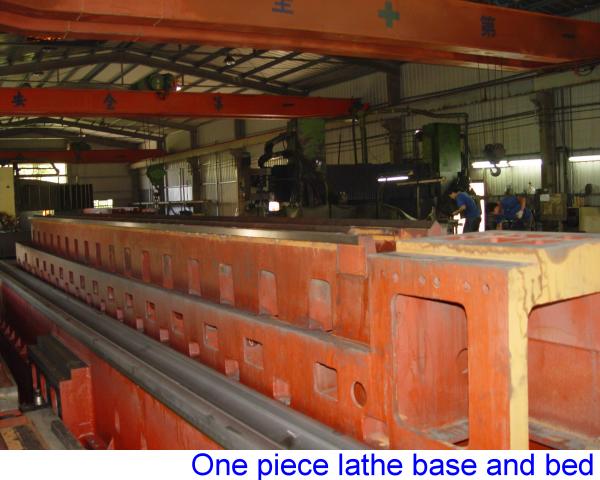

 (actually this is 2 beds, one on top of one from a bigger series) |
 |
